Direct Vision Standard 2020

So, what is Direct Vision Standard?

And how exactly does it affect YOU as an operator driver?

Call us to check your vehicle status. It’s simple!

In a nutshell, by February 2021, it will be an offence for any truck over 12 tonnes to enter London without an HGV DVS Safety Permit. The amount of direct vision (unaided by any technology) from these vehicles will be star-rated from 0-5. The star rating is set according to how much the driver can see both forwards and downwards from his seated position in the cab, as well as what vision he has in the traditional HGV nearside blindspots. This star rating has been arrived at via TfL, vehicle manufacturers, Loughborough University and associated regulatory bodies.

If you are entering London with a vehicle from abroad, the same ruling applies. Here is the TfL/DVS regulatory page for European drivers

http://content.tfl.gov.uk/hgv-safety-permit-guidance-for-operators-entering-london.pdf please look at the paragraph on page 12

“””

Page 12: Left-hand drive vehicles

Left-hand drive vehicles shall require the same equipment as right-hand drive vehicles. Mirrors, cameras and sensors should be fitted appropriately to account for the blind spot on the right-hand side of the vehicle.

All left hand drive vehicles including European visitors will require the equivalent blind-spot technology fitted to the right hand side of the vehicle.

As an operator, the star rating for your particular make and model of vehicle can be obtained from your vehicle manufacturer. From October 2019, operators with vehicles rated 1 star and above can apply for free permits which will allow you to enter London without restriction. From 2024, the minimum DVS star rating will increase to 3 star and above. You will need to contact your vehicle manufacturer to ascertain your vehicle DVS star rating.

If your vehicle is rated at 0 star, then to enter the London zones (up until 2024), you will be required to fit mitigating audio/visual technology to improve the overall safety of your vehicle. This proposed safe system requirement includes INDIRECT vision aids such as cameras and screen and sensors.

From October 2020, DVS permits will become mandatory, and if after October 2020, your vehicle enters London and does not have the necessary permit, star rating or safety technology fitted, your vehicle will be recognised by ANPR (automatic number plate recognition) and penalty charges will be issued to the operator, and to the driver where deemed appropriate.

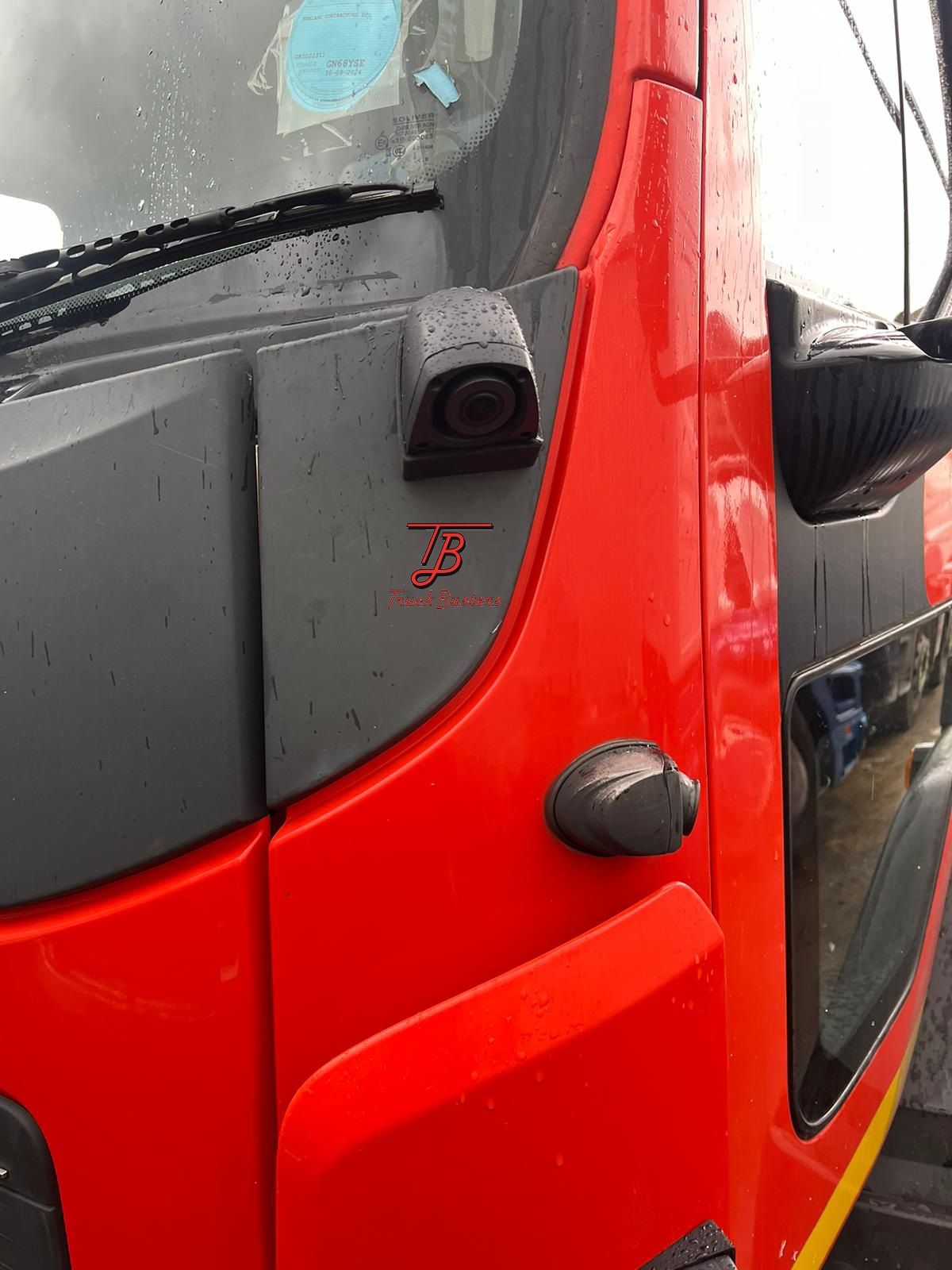

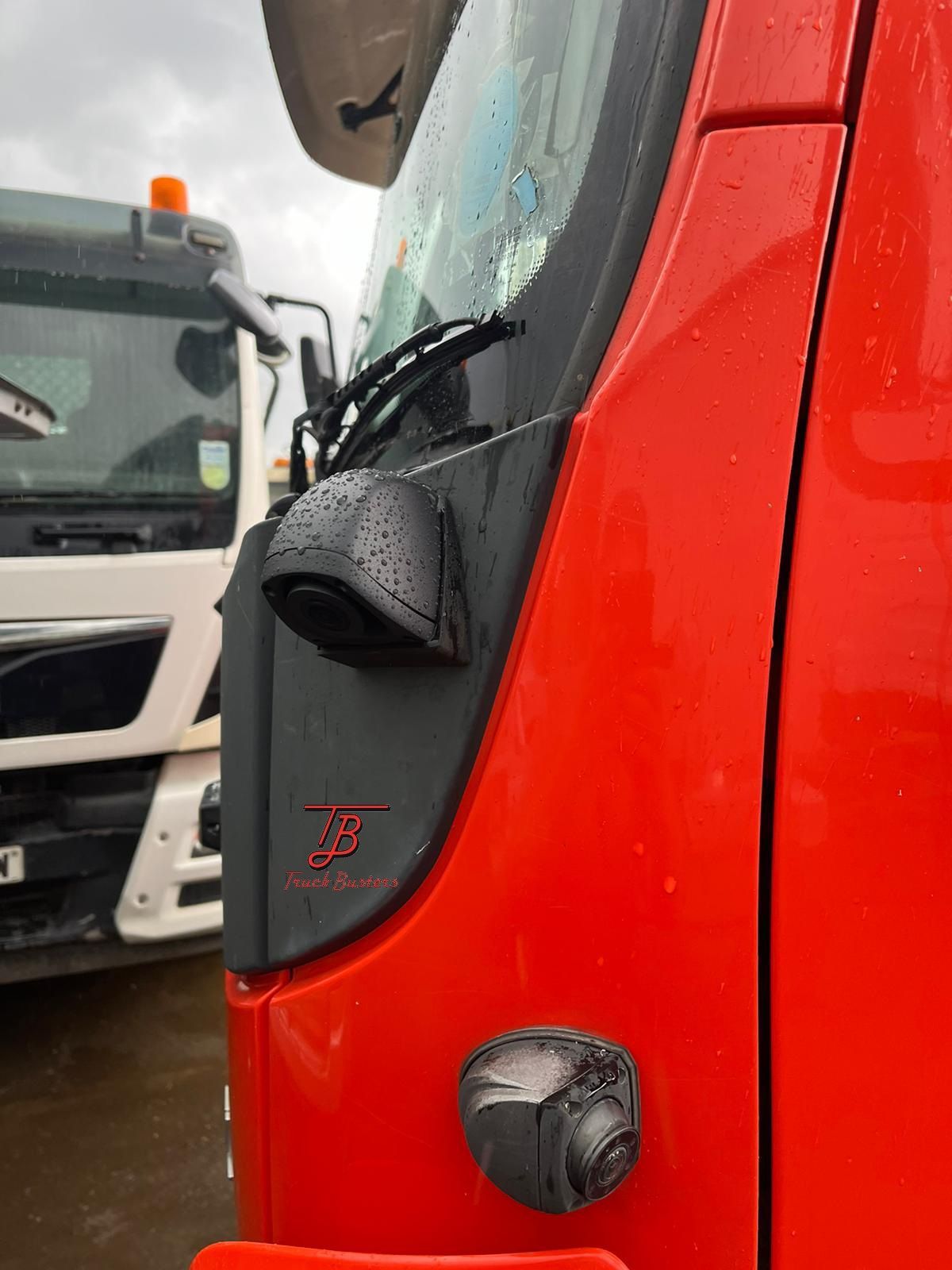

The proposed equipment required to meet any Direct Vision Standard shortfall includes blind-spot nearside sensors, a blind-spot nearside camera and screen, audible left turn alarm, side under-run protection and blind-spot safety signage.

And so to reiterate, to enter London, all zero star-rated vehicles must have the following equipment fitted:

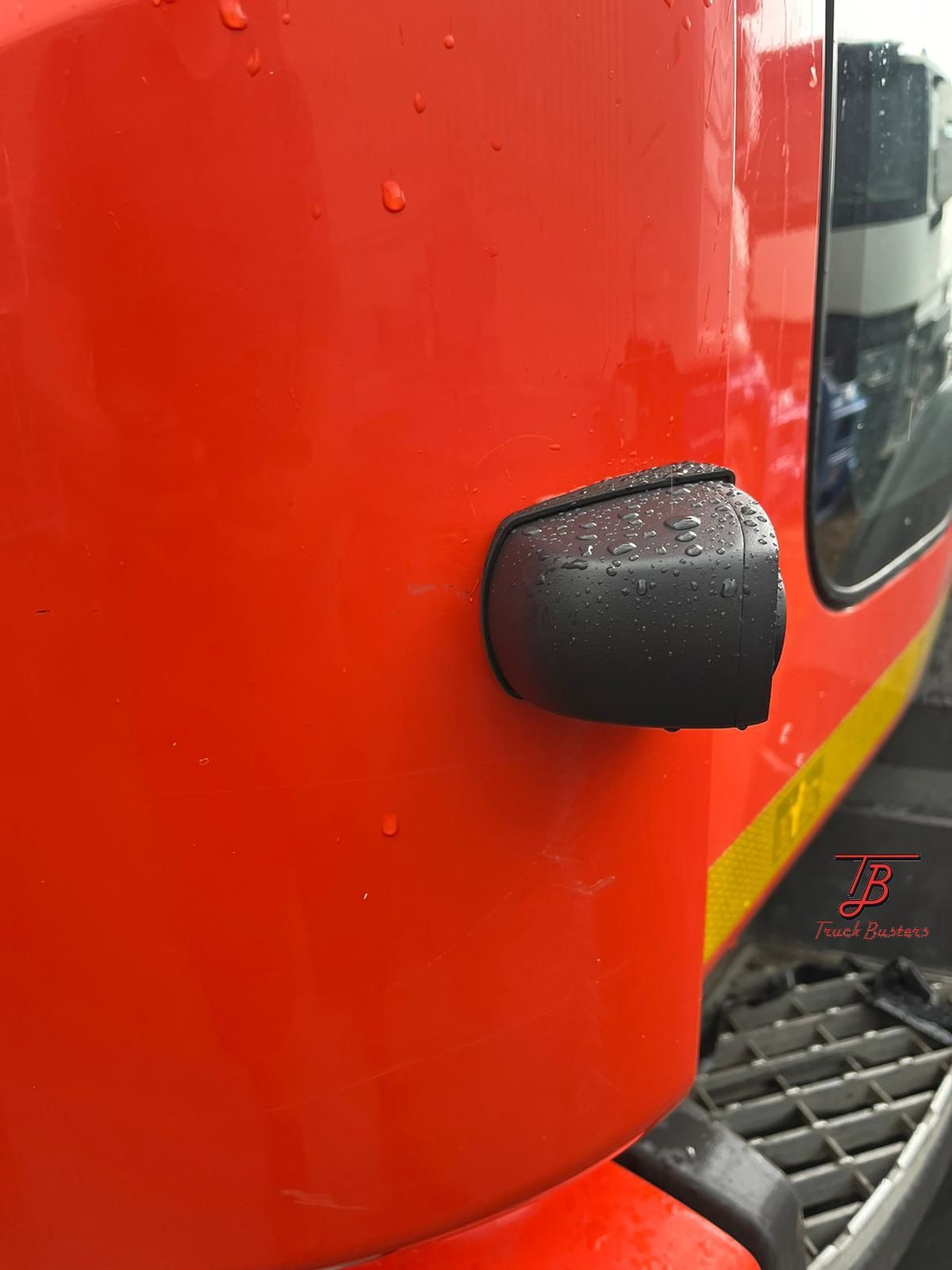

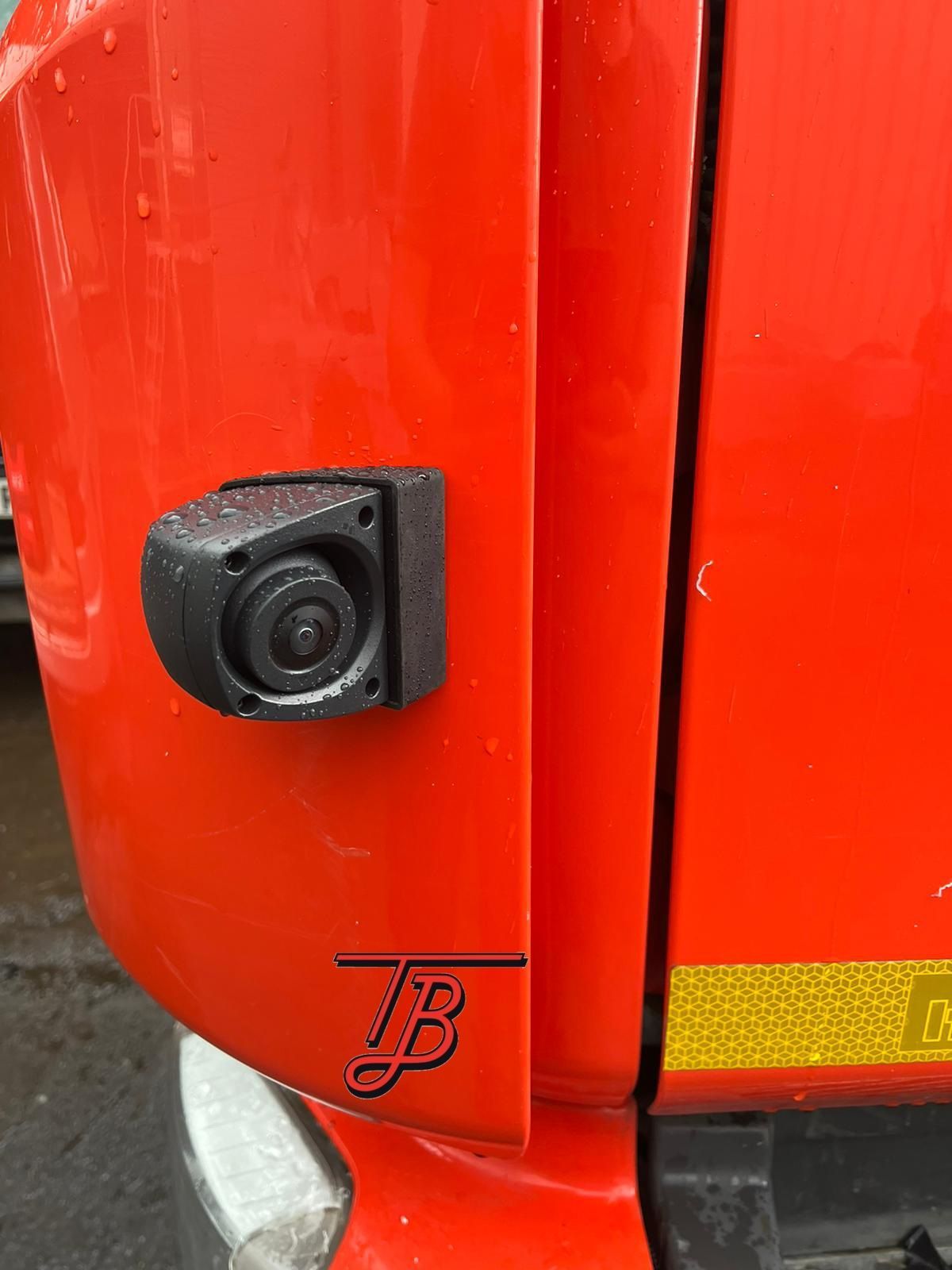

1 x nearside camera

1 x in cab screen

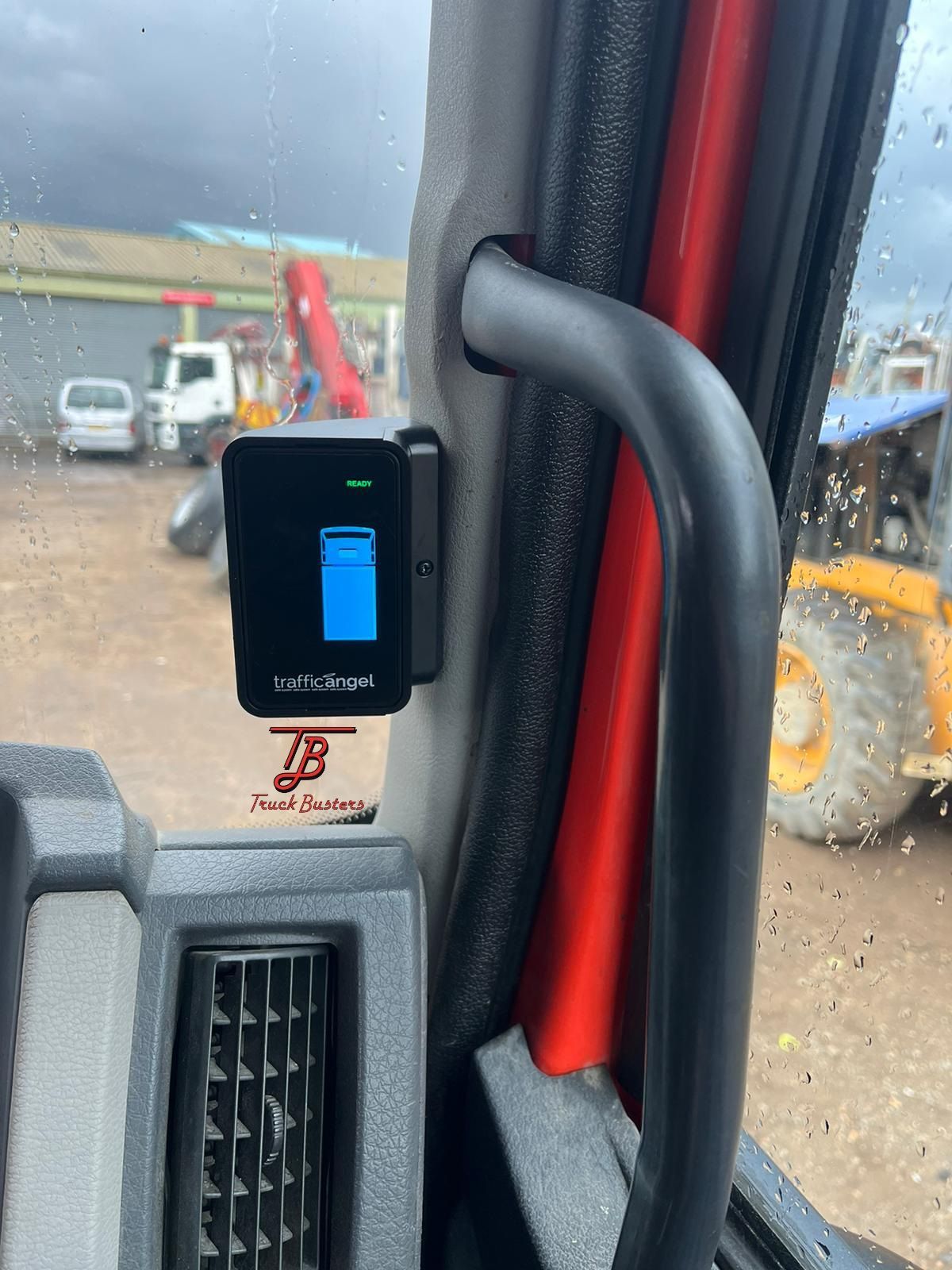

1 x nearside blindpsot sensor system

1 x nearside external audible turn alarm

safety signage
